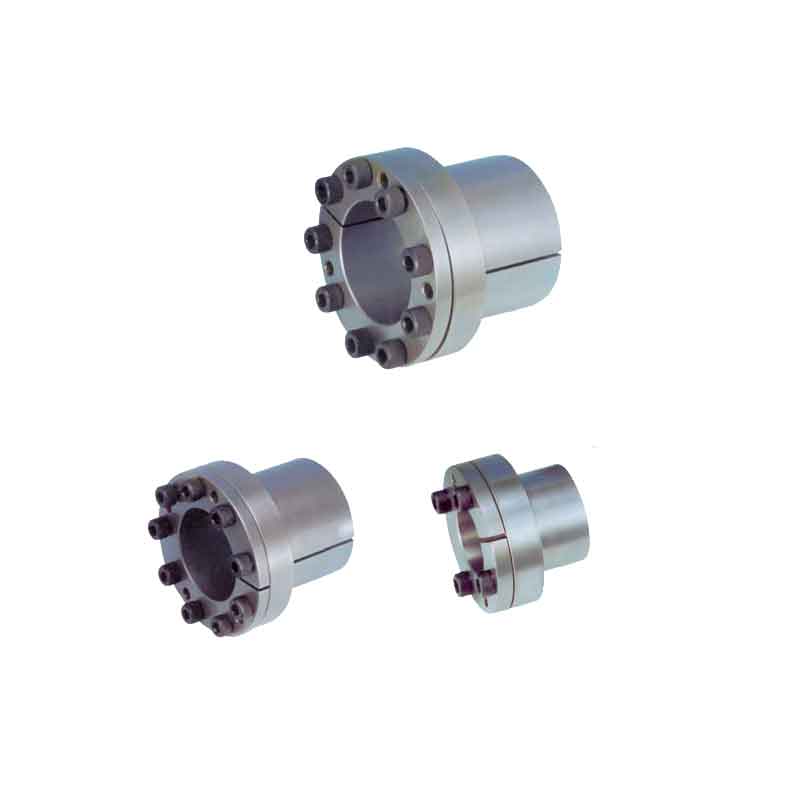

T(Z11) Type CAPT-LOCKS

Range of product: ANSI/DIN:(T(Z11)) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market) T(Z11) Type CAPT-LOCKS

Product Details

Parameters Introduction：

T NSPT-LOCKS has very small difference between the outside diameter and the inner bore diameter. It is

designed for connecting shafts with small or medium diameters especially when small space is left between

the inner hub bore and the shaft.

T NSPT-LOCKS is formed by one inner ring,one outer rings, a locating ring and relevant tightening bolts.

They have the characteristics of structure simplicity, easy installation, good durability, low production and

maintenance costs， and dust/water resistance.

The installation of T NSPT-LOCKS is as followed:

When the inner ring with flange and taper surface is fixed to the outer ring taper surface, tightening the

relevant bolts to move the inner ring axially. The pressures and frictional forces are then created between

the connected shaft and hub. Use a locating ring between the inner and the out rings to seal the connection.

Product range：

Standards

Series Type

SizeRange

ANSI/DIN

T(Z11)

CL6x14T至CL130x165T

ANSI Catalog:ANSI T(Z11) Type CAPT-LOCKS.pdf

DIN Catalog:DIN T(Z11) Type CAPT-LOCKS.pdf
