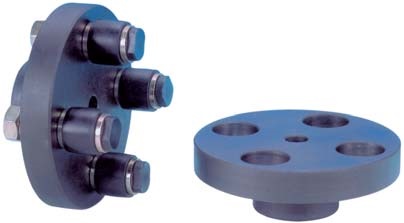

EL/ELS Type Couplings

Range of product: ANSI:(EL/ELS) DIN:(EL/ELS) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market)

Product Details

Parameters Introduction：


Material can be GG25 and S45C and S45C.

After surface is machined and phosphated, they are with high precision and are durable in use.

Special Notice: EL -coupling or ELS-coupling should be dynamically balanced according to degree Q6.3

when rotational speed reaches 1/2 of its limit in use.

Product range：

Standards

Series Type

SizeRange

ANSI

EL

EL35-EL315

ELS

ELS44-ELS250

DIN

EL

EL90-EL800

ELS

ELS112-ELS630

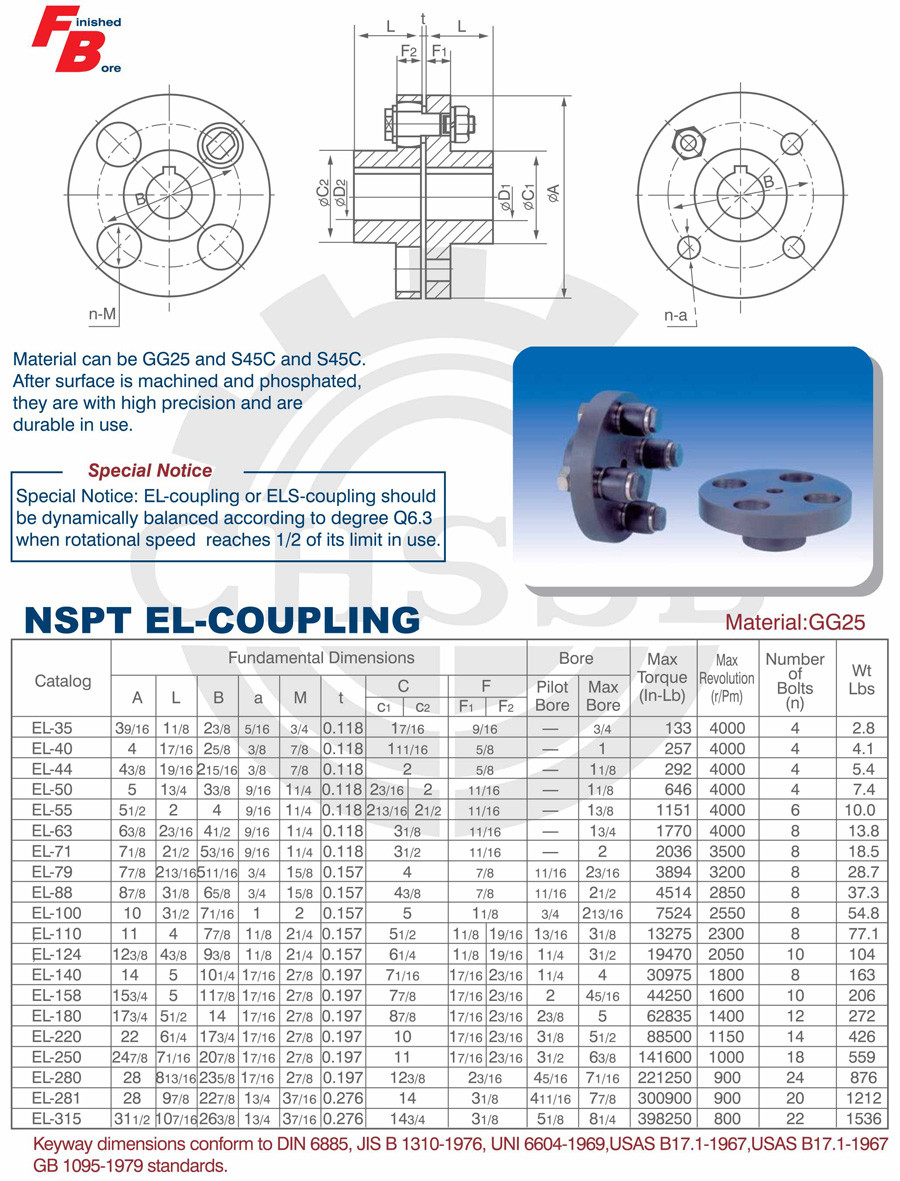

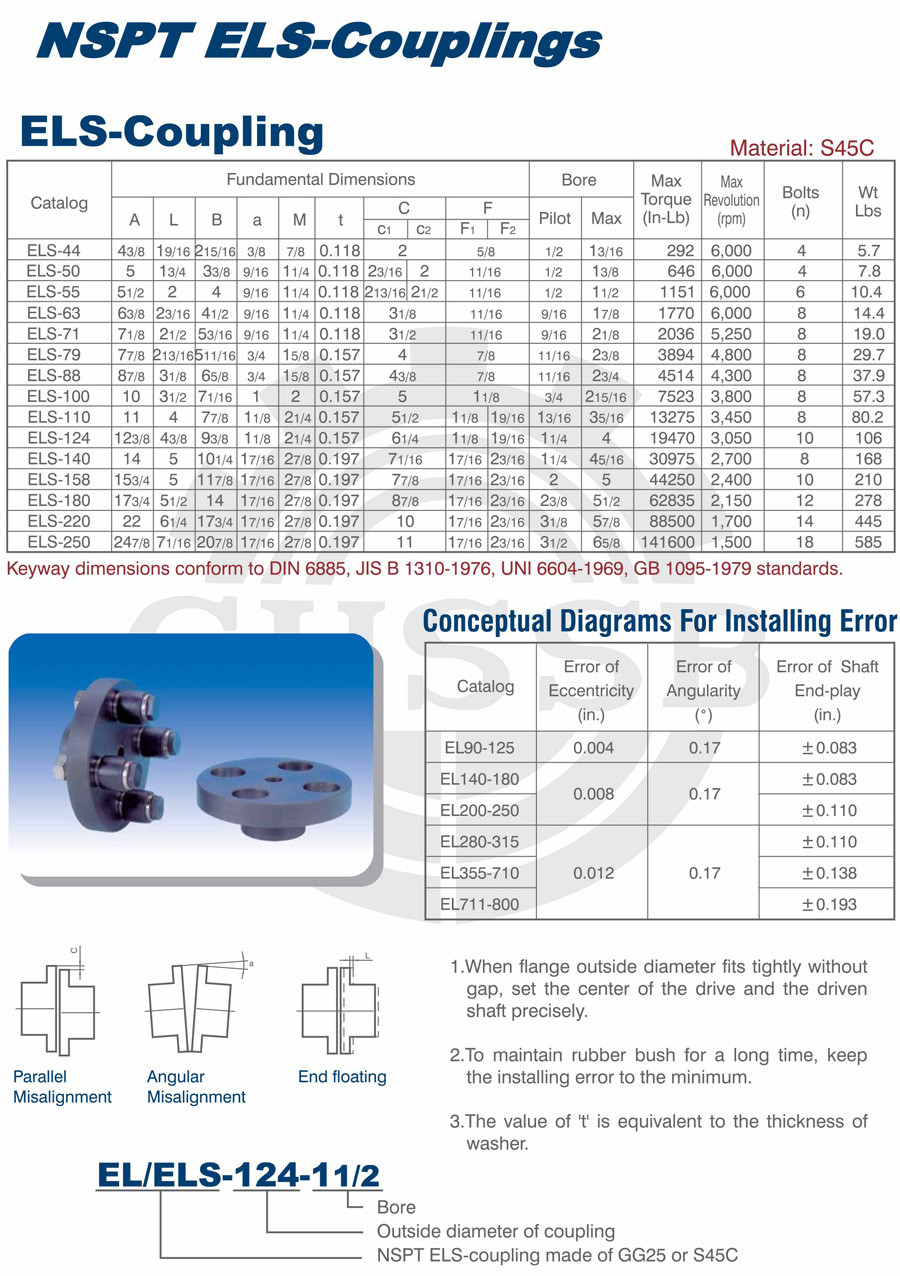

ANSI Catalog:

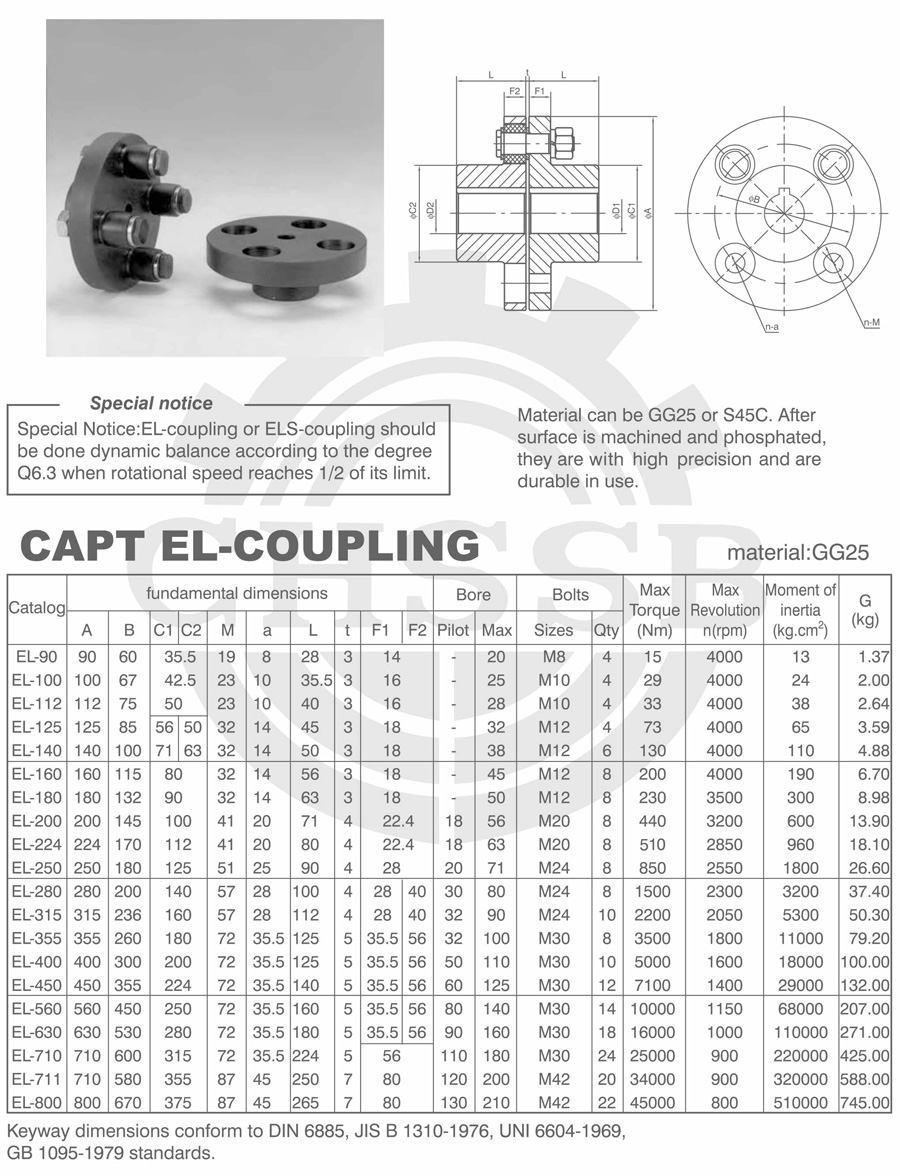

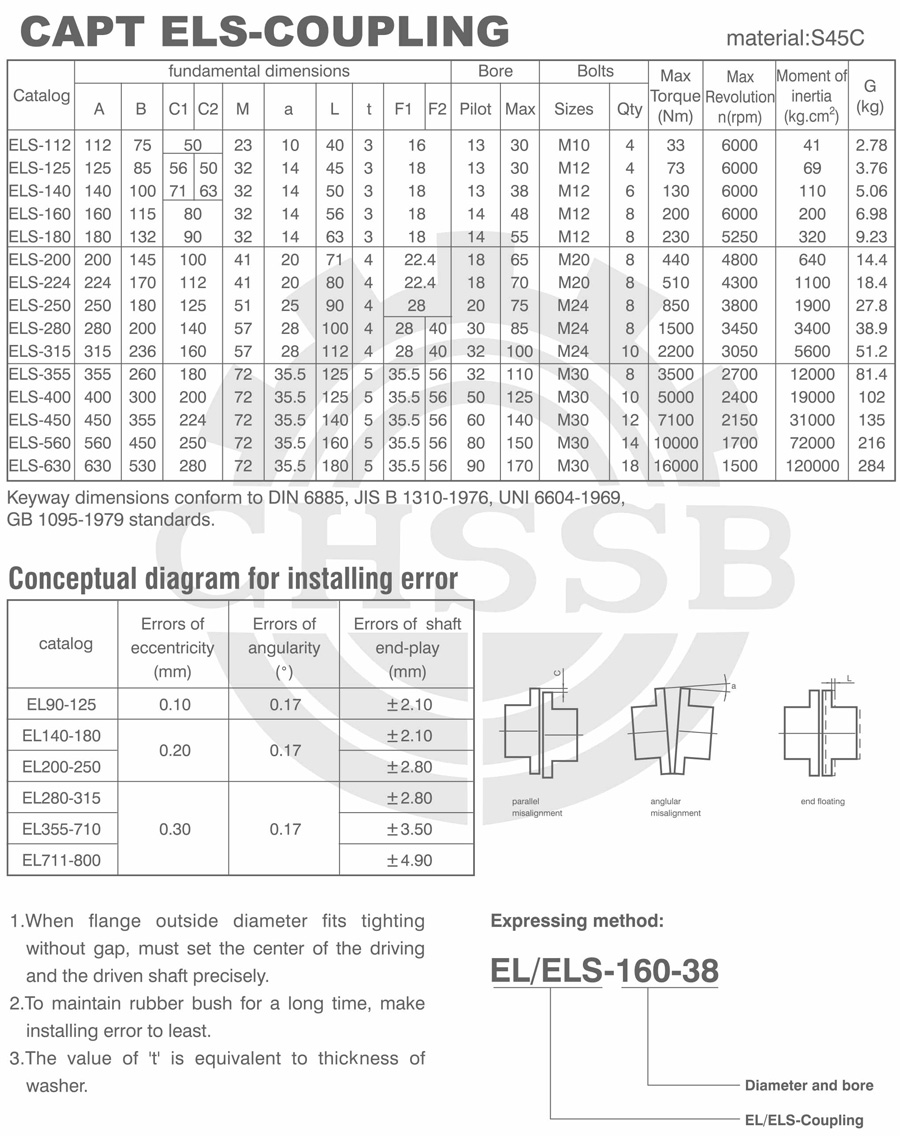

DIN Catalog:
