Home > Product > Product Detail
Product Detail
      1. SPA Stock Bore V-pulleys
      2. SPB Stock Bore V-pulleys
      3. SPC Stock Bore V-pulleys
      4. SPZ Stock Bore V-pulleys
      5. Finished Bore AK/BK V-pulleys
      6. SPA BTL V-pulleys
      7. SPB BTL V-pulleys
      8. SPC BTL V-pulleys
      9. SPZ BTL V-pulleys
      10. STL AK/BK V-pulleys
      11. BTL 3V-5V-8V V-pulleys
      12. QTL 3V-5V-8V V-pulleys
      13. STL 3V-5V-8V V-pulleys
      14. BTL A/B-C-D V-pulleys
      15. QTL A/B-C-D V-pulleys
      16. FB Adjustable Speed V-pulleys
      17. BTL Adjustable Speed V-pulleys
      18. BTL Multi-Wedged Poly-V Sheaves
      19. STL Multi-Wedged Poly-V Sheaves

BTL Adjustable Speed V-pulleys

Range of product: ANSI:(TB-1/TB-2) DIN:(TB-1/TB-2) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market) BTL Adjustable Speed V-pulleys

Product Details

Parameters Introduction：


Adjustable Speed V-Pulleys are V-Pulleys with muti-usage and adjustable speeds, which are available in

standard straight and taper lock bores.

Adjustable Speed V-Pulleys are made of GG25 high-quality grey cast iron or other materials requested by

the customers. The pulleys are machined by highly precise CNC,dynamically balanced and black coated.

They are of high transmitting precision and efficiency.

Product range：


Standards

Series Type

SizeRange

ANSI

TB-1

TB37-1至TB79-1

TB-2

TB42-2至TB79-2

DIN

TB-1

TB039-1至TB200-1

TB-2

TB108-2至TB200-2

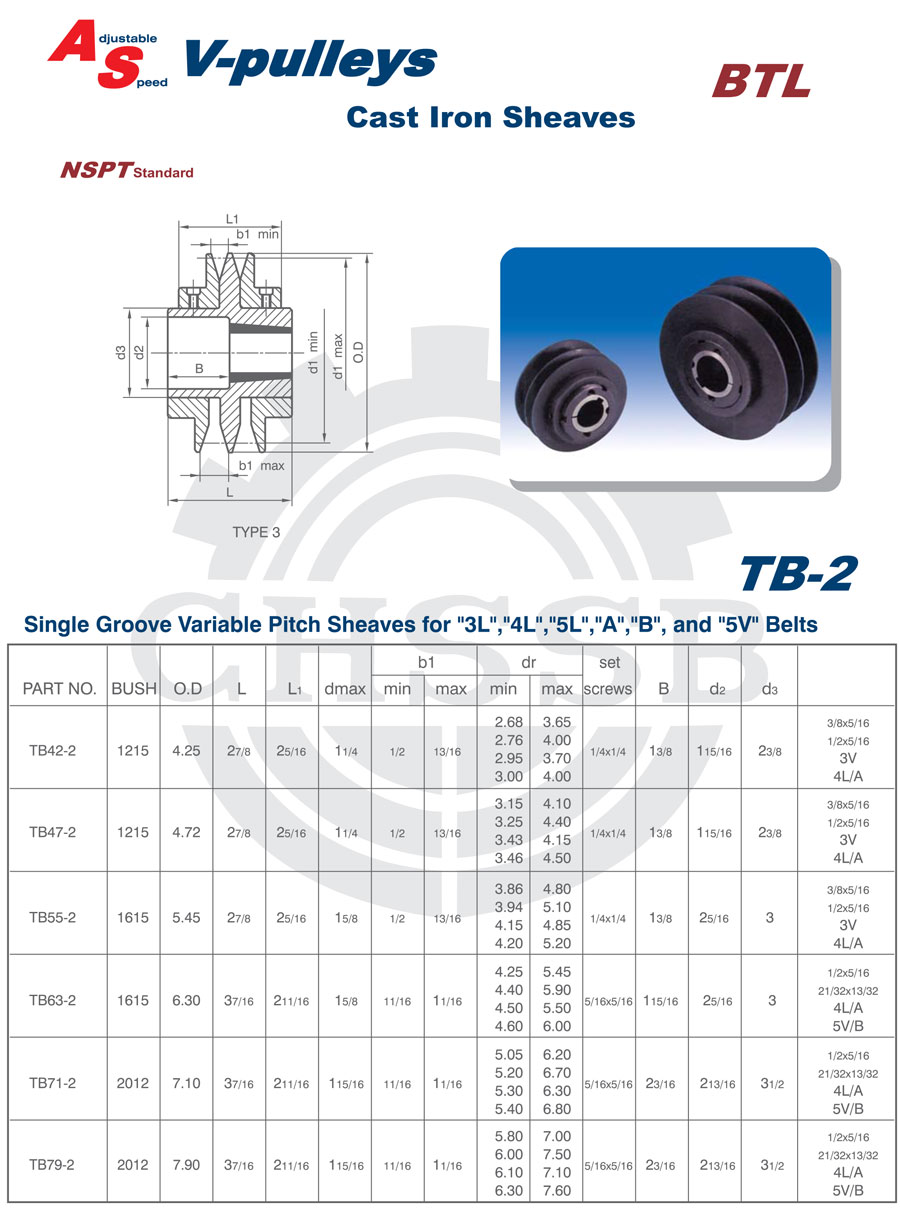

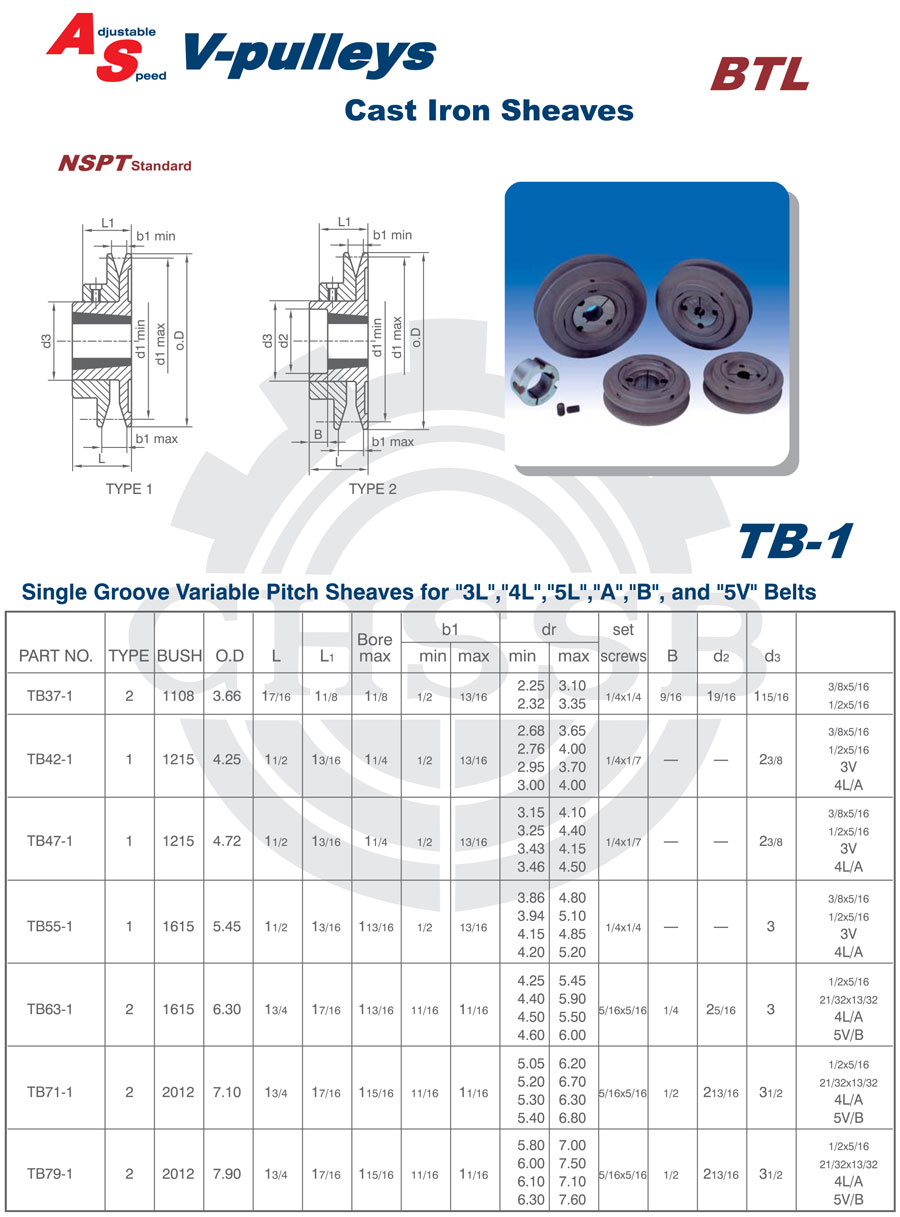

ANSI Catalog：

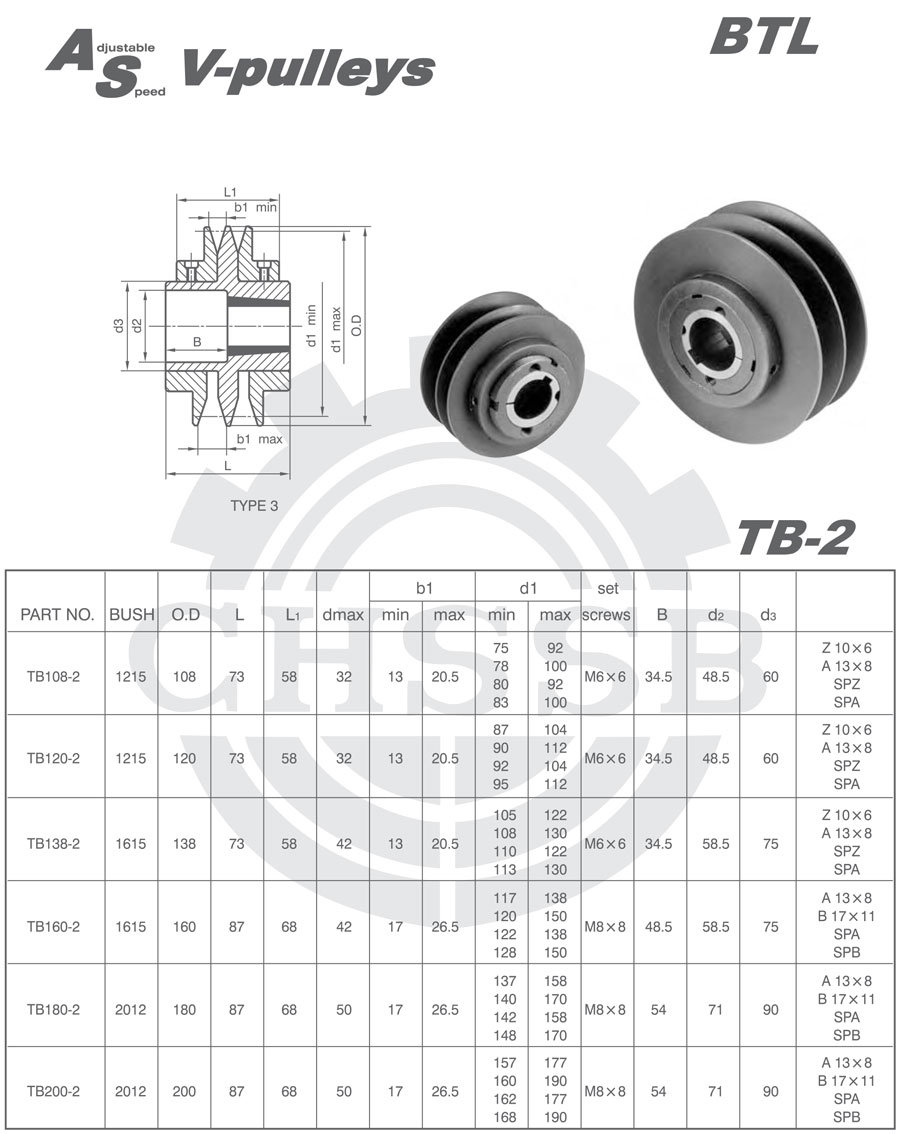

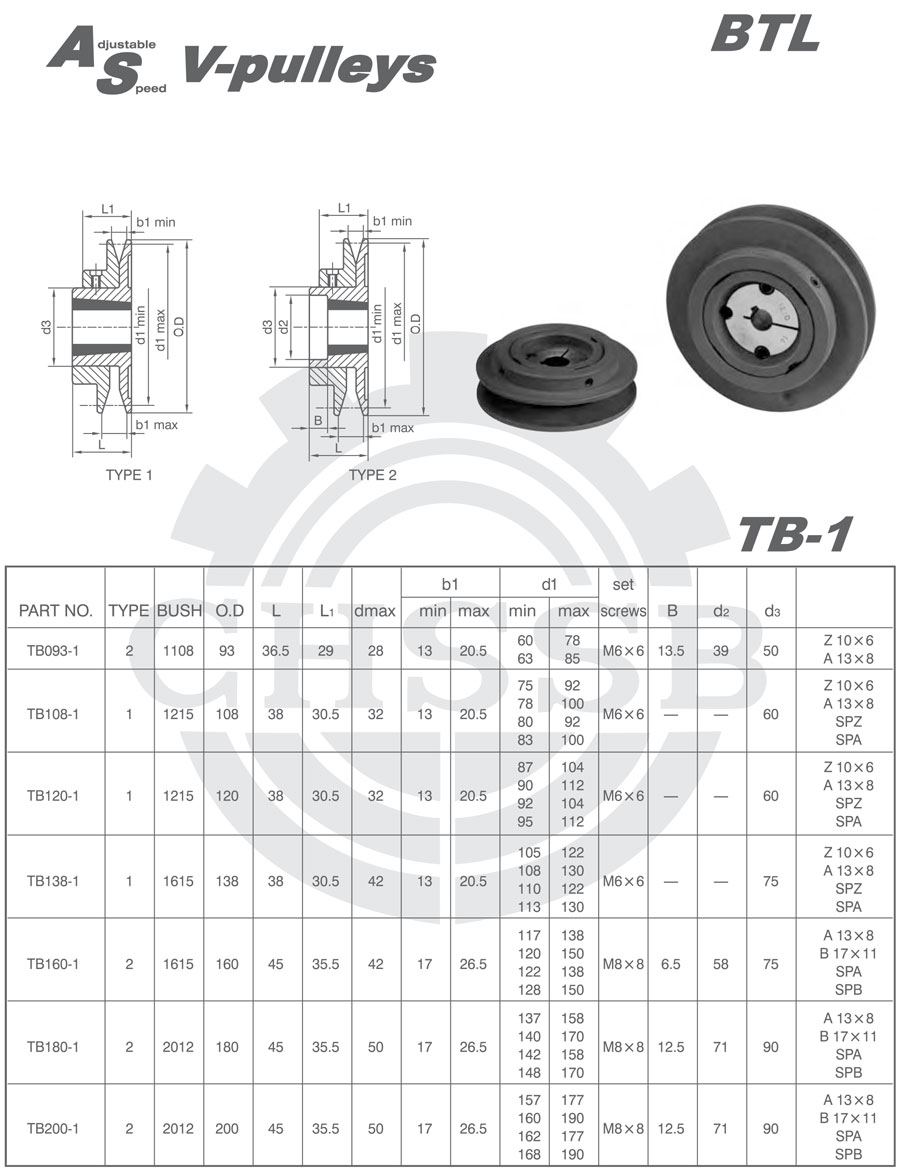

DIN Catalog：
