Home > Product > Product Detail
Product Detail
      1. CG Series of Worm Operators
      2. CFP Series of Worm Operators
      3. CWG Series of Worm Operators
      4. BG Series of Bevel Gear Operators
      5. CBG Series of Bevel Gear Operators
      6. CB Series of Bevel Gear Operators
      7. CLG Series of Bevel Gear Operators
      8. CPR Series of Bevel Gear Operators
      9. Handwheels for Gear Operators

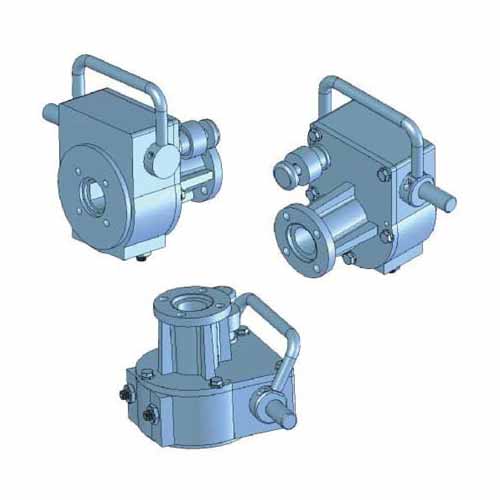

CLG Series of Bevel Gear Operators

Range of product: ANSI:(CLGA) DIN:(CLG) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market)

Product Details

Parameters Introduction：

●90 degree turning clutching drive device which can perform manual or pneumatic drives suitable for ball

valve， butterfly valve, cock valve, etc.

●Allowable output torque range is 147-15000N.m

●The dimensions connected with the valve are designed according to IS05211/MSS SP-101.

●Loaded with grease inside the gear body,shell sealed for waterproof protection with a grade of IP65 which

can be used either inside or out in open air.

Product range：

Standards

Series Type

SizeRange

ANSI

CLGA

CLGA1-CLGA140

DIN

CLG

CLG1-CLG140

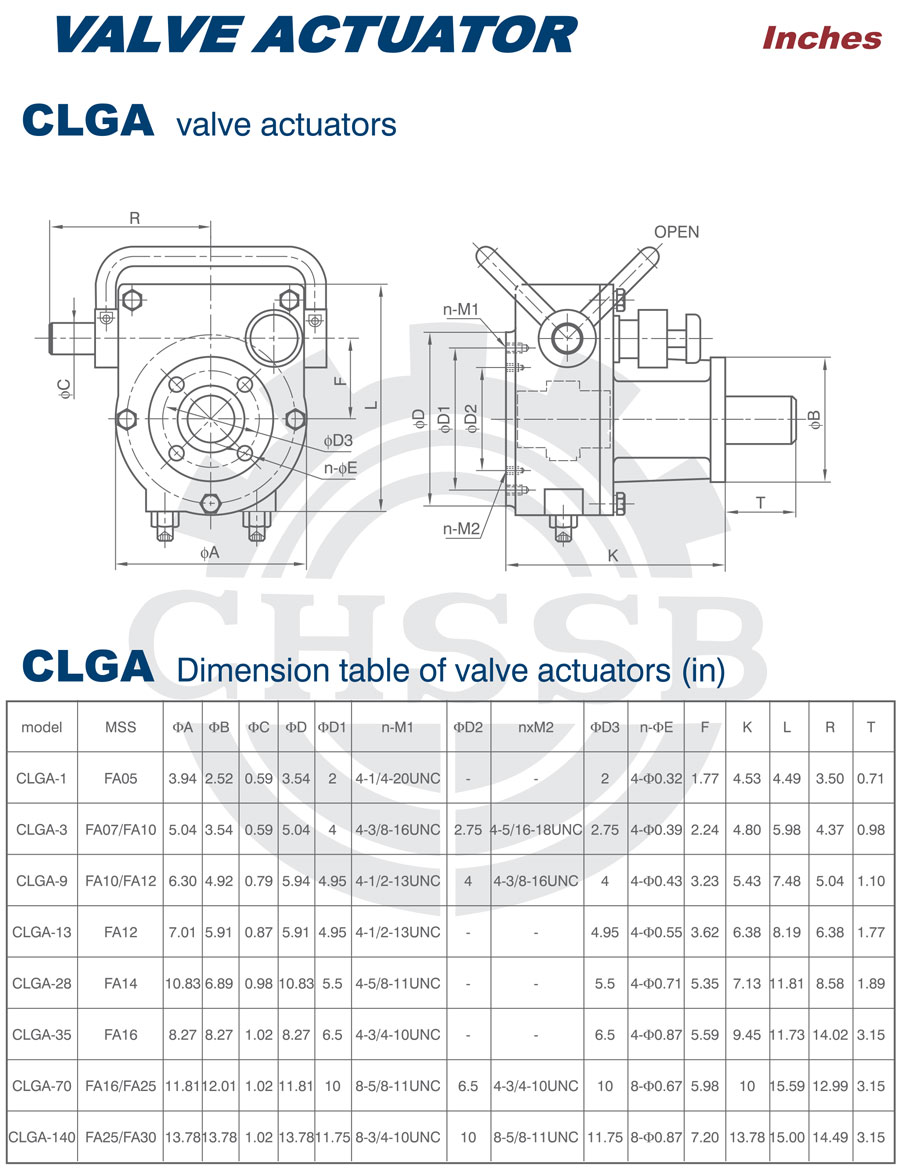

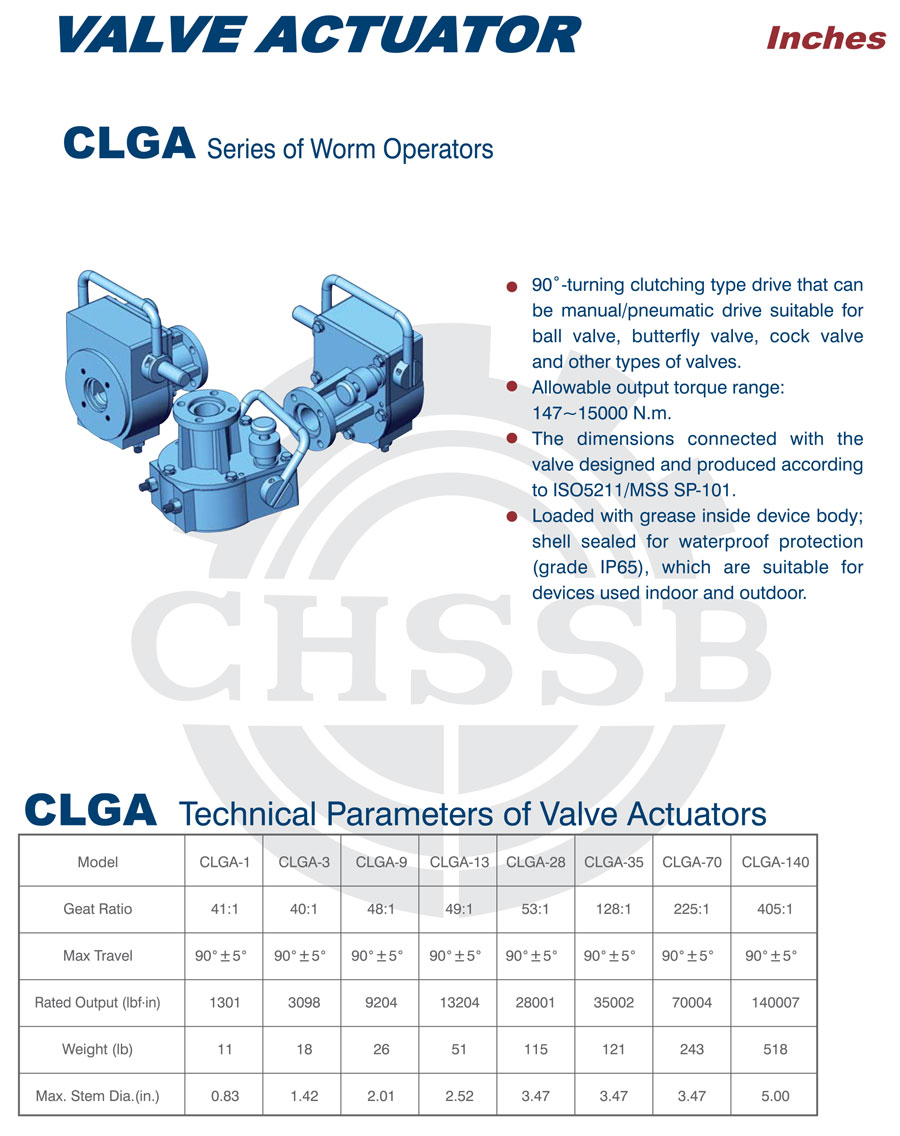

ANSI Catalog:

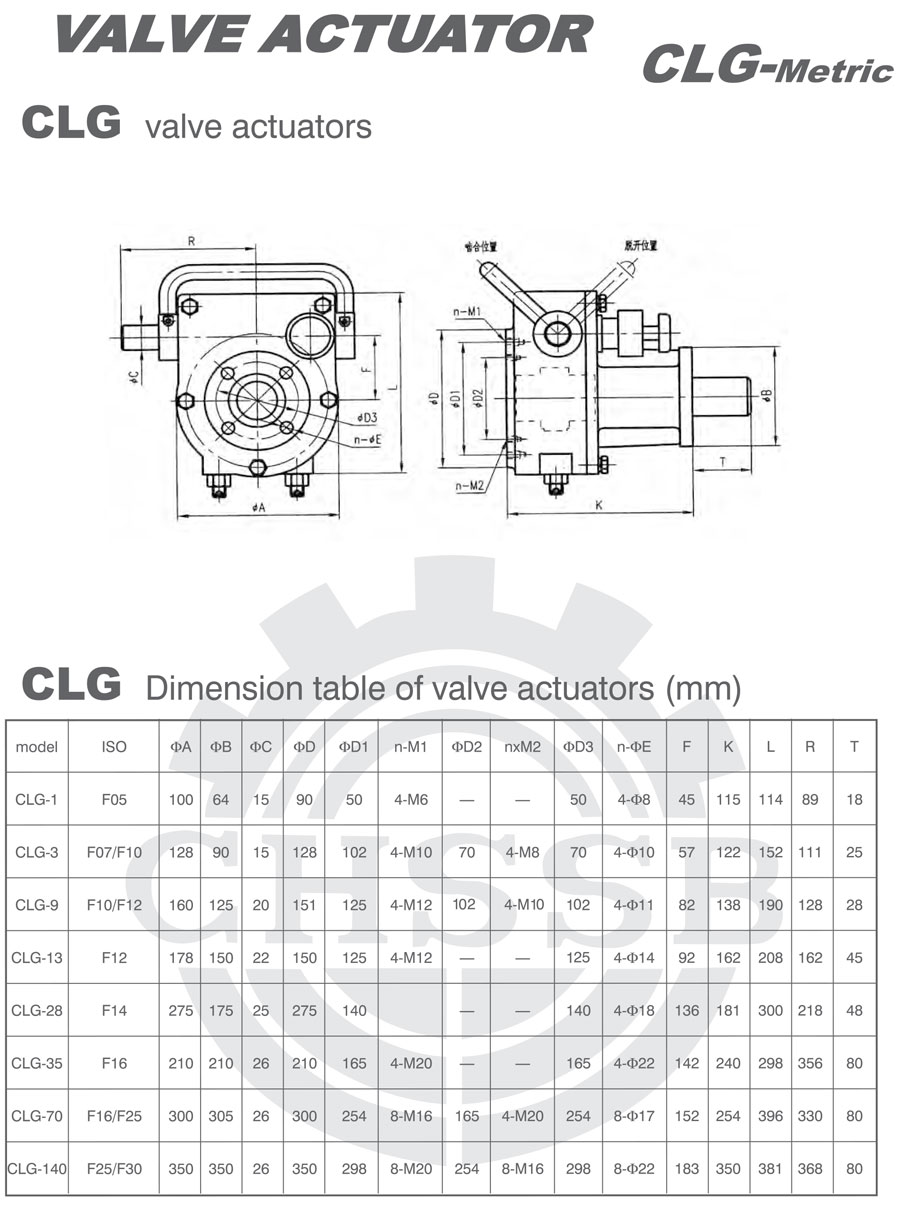

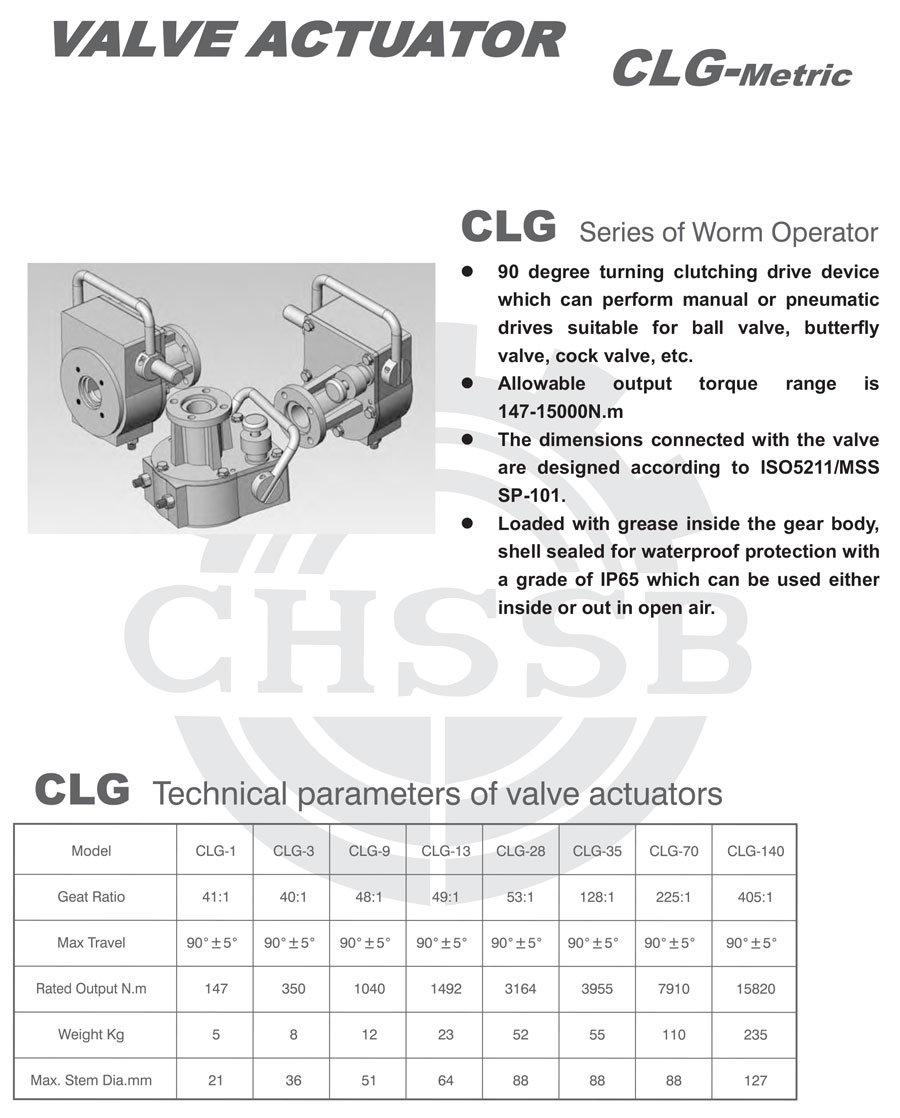

DIN Catalog:
