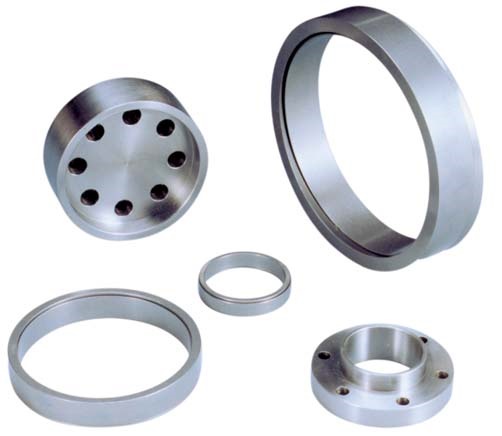

E(Z1) Type CAPT-LOCKS

Range of product: ANSI:(E/E(Z1)/F/H) DIN:(E(Z1)/F/H) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market) E(Z1) Type CAPT-LOCKS

Product Details

Parameters Introduction：

E NSPT-LOCKS include two inner and outer taper rings.The structure is simple and compact. It dose not

need a large installation space, circular without split and is well balance dynamically.

E NSPT-LOCKS transfer high surface pressures onto the shaft by the pressing flange. E NSPT-LOCKS

transfers high surface pressures onto the shaft by the pressing flange. The connection is formed by tightly

compressing the shaft and the taper hole. It is well applicable to the light load and small space installation.

Type F and type H pressing flange may also be chosen according to the different shaft diameters and

structures.

Product range：

Standards

Series Type

SizeRange

ANSI

E(Inches)

6x9至 400x440

ANSI/DIN

E(Z1)(Metric)

CL10x13E至CL180x201E

F(Tightening Flange Type F)(Metric)

F10x13至F180x201

H(Tightening Flange Type H)(Metric)

H10x13至H180x201

ANSI Catalog:ANSI E(Z1) Type CAPT-LOCKS.pdf

DIN Catalog:DIN E(Z1) Type CAPT-LOCKS.pdf
