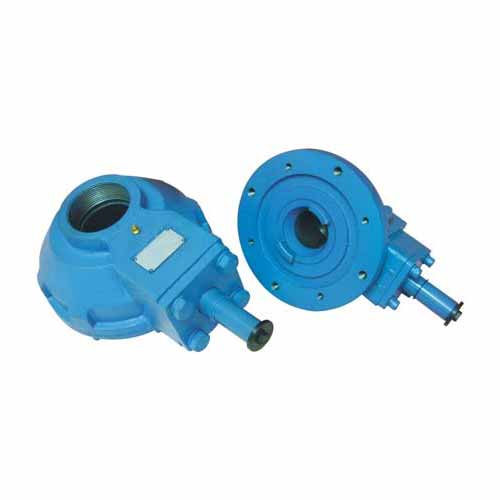

CBG Series of Bevel Gear Operators

Range of product: ANSI:(CBGA) DIN:(CBG) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market)

Product Details

Parameters Introduction：

●Multi turning type manual drive device suitable for gate valves, stop valves, etc.

●Allowable output torque range is 1017-678N.m

●Tooth scarf join type connection with valve.Flange joining is designed according to standard ISO 5211/

MSS SP-101.

●Material for gear body and cover are made of cast iron and parts are made of high precision ductile iron.

Product range：

Standards

Series Type

SizeRange

ANSI

CBGA

CBGA20-CBGA50

DIN

CBG

CBG20-CBG50

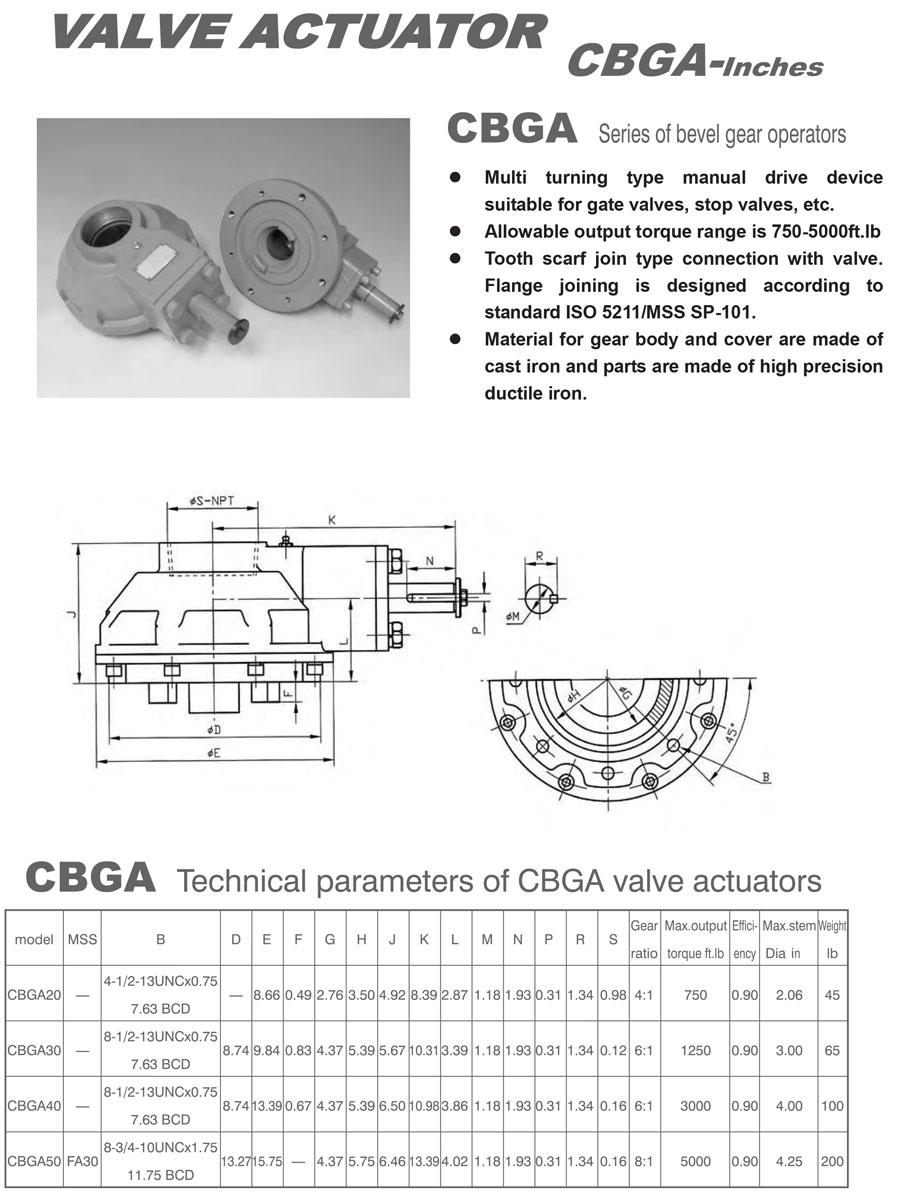

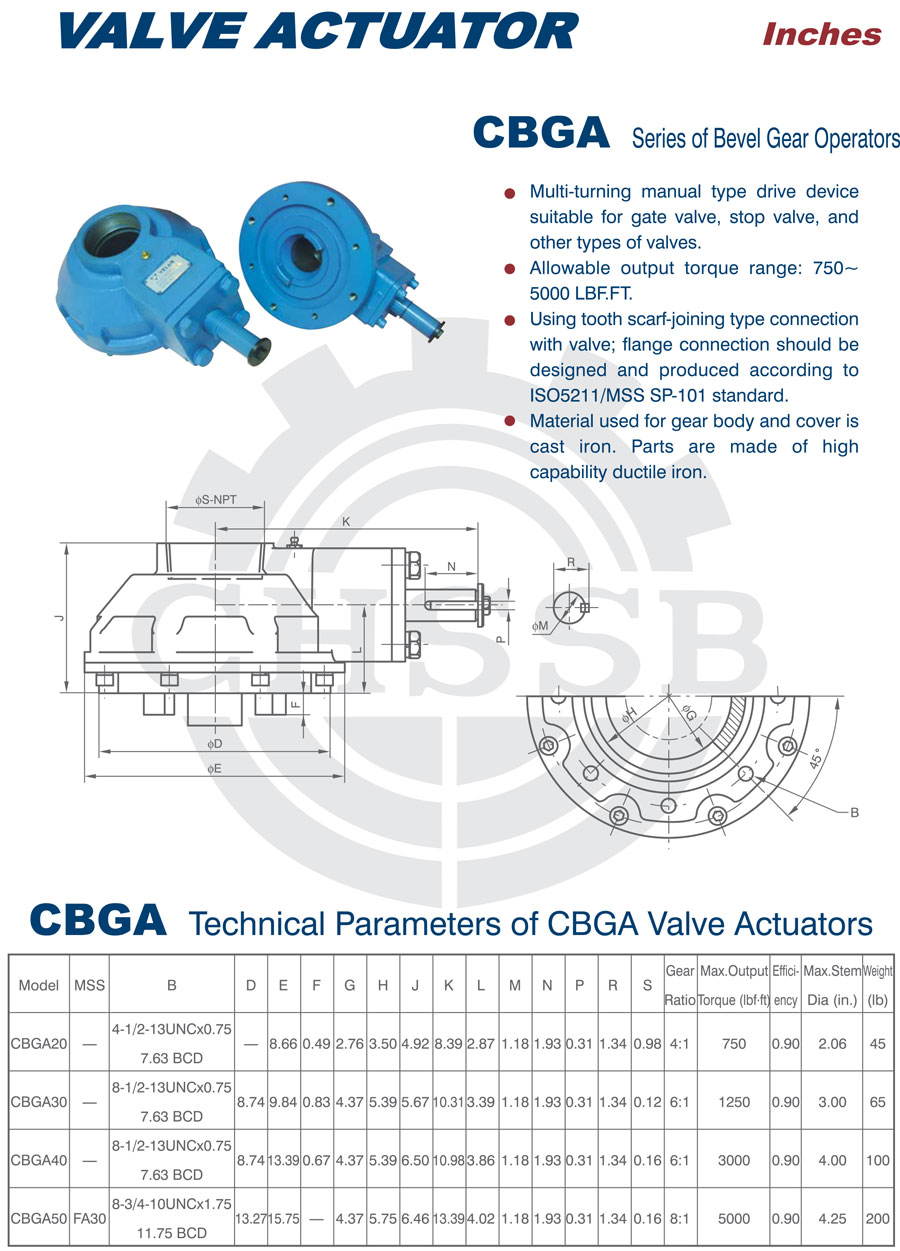

ANSI Catalog:

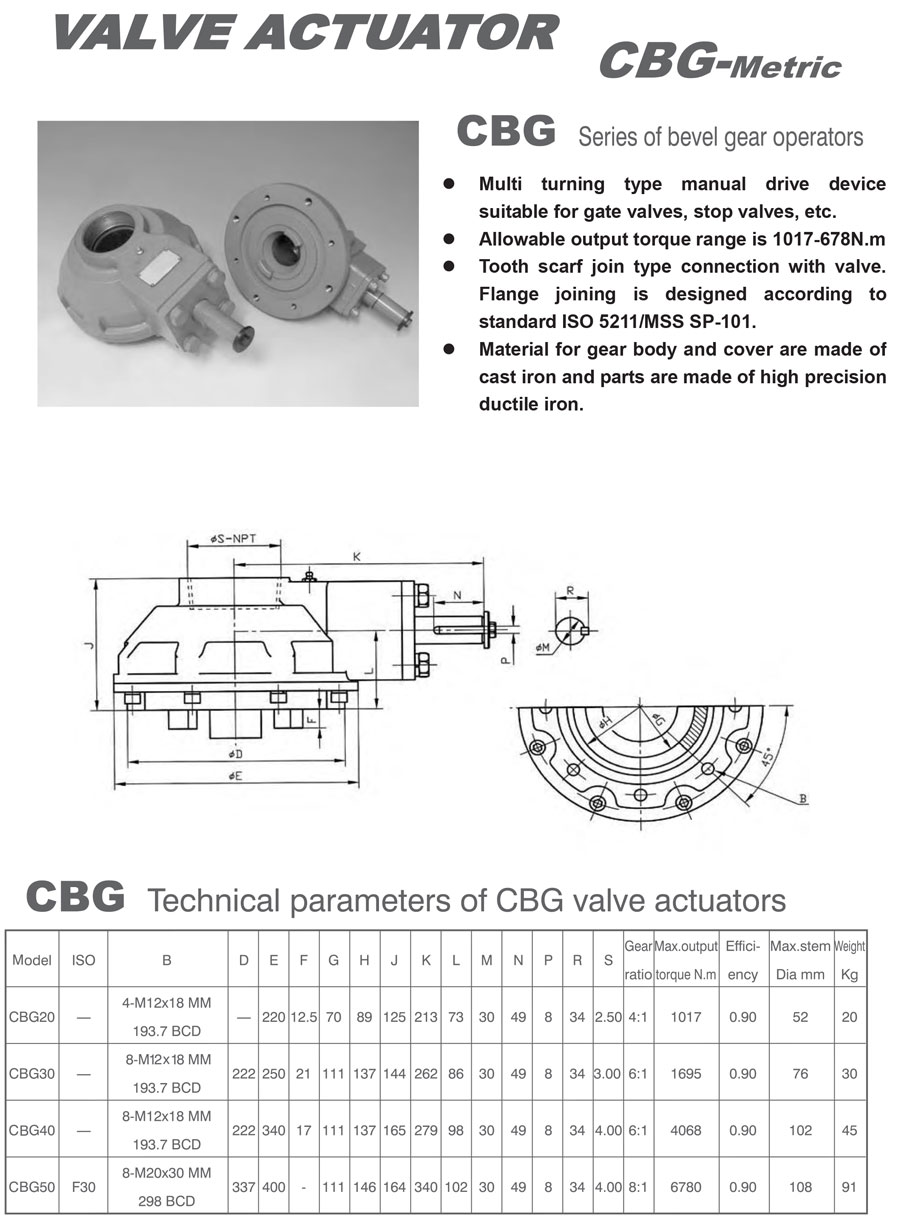

DIN Catalog:
